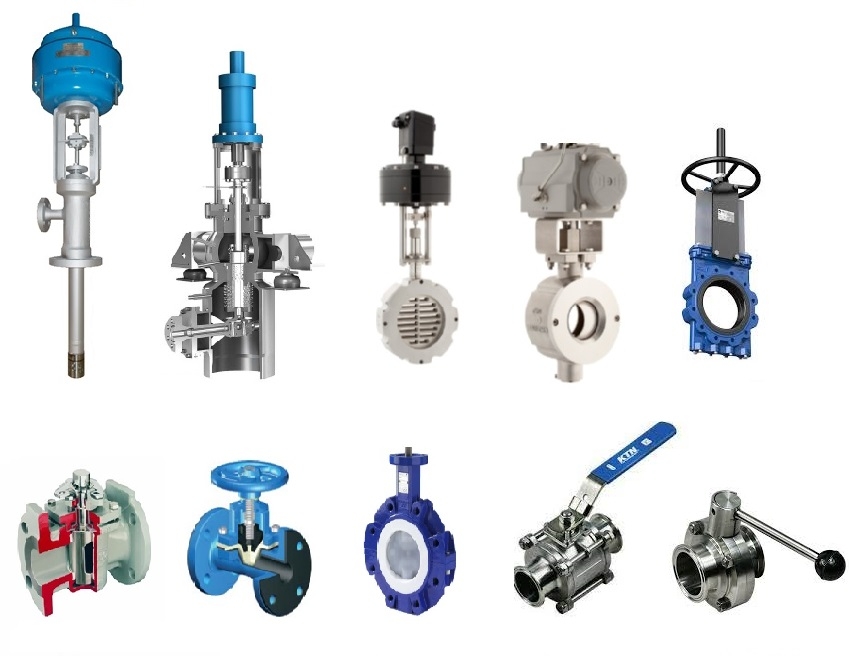

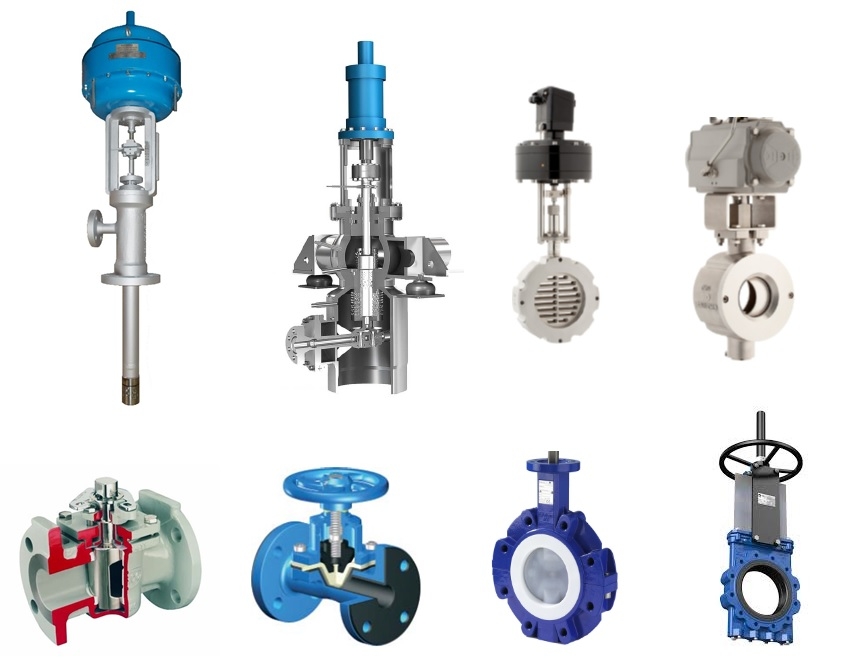

Özel vanalar


*Türbin by-pass vanaları

*Desuperheaterler

*Plug vanalar

*Bıçaklı vanalar

*Diyafram ve pinch vanalar

*V yarık, v sektör, metal sitli küresel vanalar

*Sliding gate vanalar

*Azot yastıklama(tank blanketing) regülatörleri

*Knife Gate (Bıçak Sürgülü) vanalar

*Needle(iğne) valf, manifold



Özel tasarım kelebek vana

Özel tasarım kelebek vana

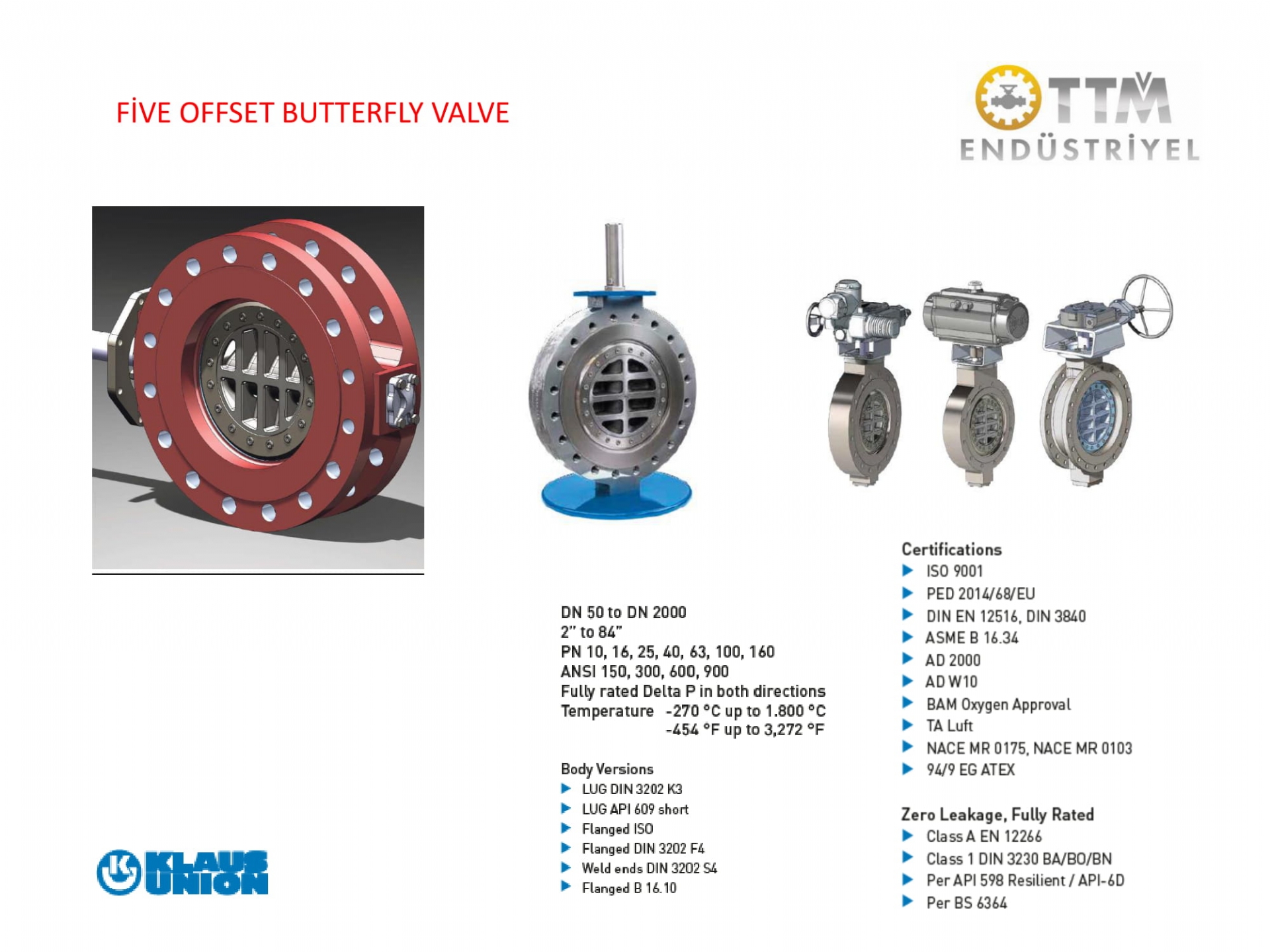

5 EKSENLİ KELEBEK VANA

SLURRY HATLARI, ZOR PROSES ŞARTLARI İÇİN

Size:DN 50 to DN 2000 2” to 84”
Pressure:PN 10, 16, 25, 40, 63, 100, 160/ ANSI 150, 300, 600, 900
Temperature -270 °C up to 1.800 °C


Body Versions
* LUG DIN 3202 K3
* LUG API 609 short
* Flanged ISO
* Flanged DIN 3202 F4
* Weld ends DIN 3202 S4
* Flanged B 16.10

Certifications
* ISO 9001
* PED 2014/68/EU
* DIN EN 12516, DIN 3840
* ASME B 16.34
* AD 2000
* AD W10
* BAM Oxygen Approval
* TA Luft
* NACE MR 0175, NACE MR 0103
* 94/9 EG ATEX

Strong Solutions for Special Applications
* Sealed bearing design
* Monitoring port
* Shaft extensions
* Steam jacket
* Vacuum isolation
